Sun StorEdge[tm] A3500 Array: Full Components List

Array Controller
Cabinet
Cable
Disks
    Disk Array
Host Bus Adapter/Controller
Power Supply
Exploded View

Table Legend
[F] = Field Replaceable Unit (FRU)
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system

Array Controller
Option # Top Level
Part #		 Manufacturing
Part #		 Description Substitute
Part #
n/a 380-0083 370-2431 [F] Empty Sonoma Enclosure with Backplane n/a
n/a n/a 370-2433 [F] SCSI Array Controller Fan Assembly n/a
n/a n/a 370-2438 [F] 8MB Processor Memory SIMM n/a
X6537A [S] 595-4979 540-3083 [F] A3500 Differential SCSI Array Controller with Memory n/a
X7020A [S] 595-4156 370-2439 [F] 32MB Cache Memory SIMM n/a
Cabinet
Option # Top Level
Part #		 Manufacturing
Part #		 Description Substitute
Part #
ARY030A 595-4706 540-3707 72 inch Sun StorEdge Expansion Cabinet n/a
X9818A 595-4999 370-3675 72 inch Sun StorEdge Expansion Cabinet Front Door Kit n/a
Cable
Option # Top Level
Part #		 Manufacturing
Part #		 Description Substitute
Part #
n/a n/a 530-1883 [F] External SCSI Cable, HD68 to HD68, 20cm n/a
X901A 595-3503 530-1884 [F] External SCSI Cable, HD68 to HD68, 80cm n/a
X902A 595-3504 530-1885 [F] External SCSI Cable, HD68 to HD68, 2M n/a
X979A 595-2920 530-1886 [F] External SCSI Cable, HD68 to HD68, 12M n/a
n/a n/a 565-1397 [F] Cable FRU Kit, Contains:
370-2724 - Battery to Backplane
370-2870 - Power Supply Interface Cable
370-2871 - Power Supply DC Power Cable
 n/a
X3830A 595-4694 530-2454 [F] External SCSI Cable, HD68 to VHDC, 4M (For PCI Systems) n/a
X3831A 595-4695 530-2455 [F] External SCSI Cable, HD68 to VHDC, 10M (For PCI Systems) n/a
Disks
Option # Top Level
Part #		 Assembly FRU Manufacturing
Part #		 Description Substitute
Part #
X5238A 595-5199 540-4178 [F]

D1000 FRU
w 1" Bkt 540-3024
w Plate 340-4288 or 340-6640
or 340-5928 or 340-7269		 390-0002 [F] Seagate ST318203LC (18.2GB - 10000 RPM) 390-0038 [F]
390-0060 [F]
390-0085 [F]
390-0006 Fujitsu MAG3182LC (18.2GB - 10000 RPM) n/a
390-0038 [F] Seagate ST318404LC (18.2GB - 10000 RPM) 390-0002 [F]
390-0060 [F]
390-0085 [F]
390-0043 Fujitsu MAJ3182MC (18.2GB - 10000 RPM) n/a
390-0048 IBM DDYS-T18350 (18.2GB - 10000 RPM) n/a
390-0066 Fujitsu MAN3184MC (18.2GB - 10000 RPM) n/a
390-0085 [F] Seagate ST318305LC (18.2GB - 10000 RPM) 390-0002 [F]
390-0038 [F]
390-0060 [F]
X5243A 595-5497 540-4520 [F]

A1000/D1000 FRU
w 1" Bkt 540-3024
w Plate 340-4288 or 340-6640
or 340-5928 or 340-7269		 390-0050 [F] Seagate ST336704LC (36.4GB - 10000 RPM) 390-0069 [F]
390-0051 Fujitsu MAJ3364MC (36.4GB - 10000 RPM) n/a
390-0052 IBM DDYS-T36950 (36.4GB - 10000 RPM) n/a
390-0065 Fujitsu MAN3367MC (36.4GB - 10000 RPM) n/a
390-0069 [F] Seagate ST336605LC (36.4GB - 10000 RPM) 390-0050 [F]
390-0109 [F] Seagate ST336607LC (36.4GB - 10000 RPM) n/a
X5230A [S] 595-4491 540-3720 [F]

D1000 FRU
w 1" Bkt 540-3024
w Plate 340-4288		 370-3404 IBM DDRS-39130 (9.1GB - 7200 RPM) 370-3413 [F]
370-3595 [F]
390-0004 [F]
540-3966 [F]
370-3413 [F] Fujitsu MAB3091SC (9.1GB - 7200 RPM) n/a
370-3595 [F] Seagate ST39173WC (9.1GB - 7200 RPM) 370-3595 [F]
390-0004 [F]
540-3966 [F]
390-0004 [F] Fujitsu MAE3091LC (9.1GB - 7200 RPM) 370-3595 [F]
540-3966 [F]
X5233A [S] 595-4492 540-3721 [F]

D1000 FRU
w 1.6" Bkt 540-3925
w Plate 340-4288 or 340-6640
or 340-5928 or 340-7269		 370-3414 [F] Fujitsu MAA3182SC (18.2GB - 7200 RPM) n/a
370-3716 IBM DGHS-18Y (18.2GB - 7200 RPM) n/a
X5235A [S] 595-5017 540-3966 [F]

D1000 FRU
w 1" Bkt 540-3024
w Plate 340-4288 or 340-6640
or 340-5928 or 340-7269		 370-3649 Seagate ST39102LC (9.1GB - 10000 RPM) n/a
390-0005 Fujitsu MAG3091LC (9.1GB - 10000 RPM) 390-0009 [F]
390-0009 [F] Seagate ST39103LC (9.1GB - 10000 RPM) 390-0005
390-0037 [F]
390-0037 [F] Seagate ST39204LC (9.1GB - 10000 RPM) 390-0005
390-0009 [F]
X5240A [S] 595-5258 540-4263 [F]

Spud Bracket FRU
w 1.6" Bkt 540-3025
w Plate 340-4288 or 340-6640
or 340-5928 or 340-7269		 390-0014 Fujitsu MAF3364LC (36.4GB - 10000 RPM) n/a
390-0020 Seagate ST136403LC (36.4GB - 10000 RPM) n/a
Disk Array
Option # Manufacturing
Part #		 Description Substitute
Part #
n/a 540-3760 Sun StorEdge D1000 12-Drive Chassis with Rackmount Tray n/a
n/a 540-3761 Sun StorEdge D1000 8-Drive Chassis with Rack Mount Tray n/a
Host Bus Adapter / Controller
Option # Top Level
Part #		 Manufacturing
Part #		 Description Substitute
Part #
X1065A 595-4187 370-2443 [F] Differential Ultra/Wide SCSI (UDWIS/SBus) n/a
X6541A 595-4414 375-0006 [F] Dual Differential Ultra/Wide SCSI (PCI) n/a
Power
Option # Manufacturing
Part #		 Description Substitute
Part #
n/a 300-1393 [F] 230V AC Power Sequencer for Sun StorEdge 72 inch Expansion Cabinet n/a
n/a 300-1340 [F] FDK PEX737-30 360 Watt Power Supply n/a
n/a
 370-2432 [F] Power Supply Fan Assembly n/a
n/a 370-2434 [F] Battery Assembly n/a
n/a 370-2436 [F] Symbios 150 Watt Power Supply n/a
n/a 370-2724 Ribbon Cable, Battery to Backplane (order Cable FRU Kit 565-1397) n/a
n/a 370-2870 Power Supply Interface Cable (order Cable FRU Kit 565-1397) n/a
n/a 370-2871 Power Supply DC Power Cable (order Cable FRU Kit 565-1397) n/a
n/a 530-1343 [F] 230V AC Power Cord, IEC-320 to NEMA 6-15 n/a
n/a 530-1351 [F] Power Cable, 2m, IEC-320-c13 to NEMA 6-15p, 10A/250V n/a
n/a 530-2197 [F] AC Power Cord, AMP Mate-N-Lock to IEC-320 n/a
n/a 530-2264 [F] AC Power Cord, AMP Mate-N-Lock to Y IEC-320 n/a
X3858A 530-2674 [F] AC Power Cord, Han 6HsB to NEMA L6-30P (US) 4M n/a
X3859A 530-2675 [F] Han 6HsB to Blue 32A IEC309 (Intl) n/a
Click here to see the various AC Plug Types

Table Legend
[F] = Field Replaceable Unit (FRU)
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system

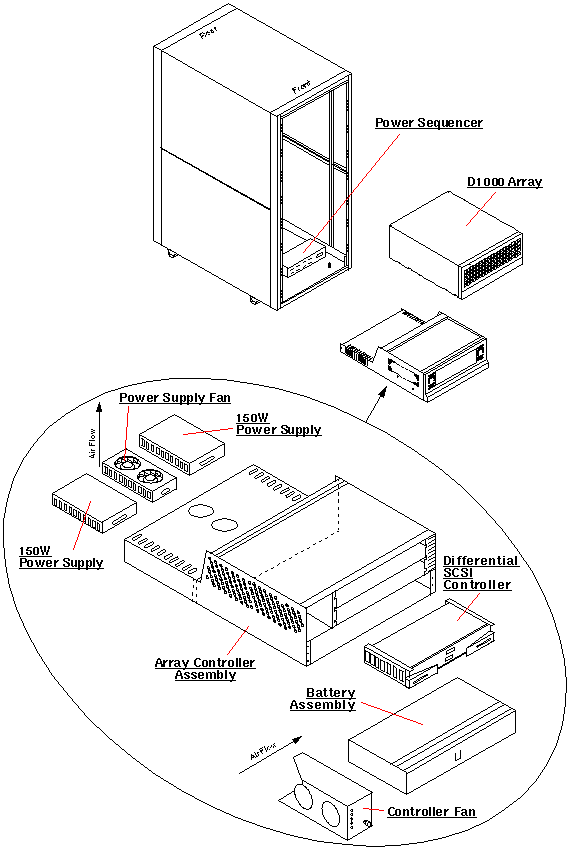

Exploded View


Table Legend
[F] = Field Replaceable Unit (FRU)

CODE
MANUFACTURING
PART #
DESCRIPTION
NS 150-1890 [F] Differential SCSI Terminator, HD68
NS 370-2437 [F] Mounting Rail Set (370-2437-02 recommended)
NS 370-2869 [F] Power Supply Chassis Assembly
NS 370-3290 Empty 1.0" Disk Drive Slot Filler
NS 370-3291 Empty 1.6" Disk Drive Slot Filler
NS 530-1619 [F] Grounding Cable
NS 540-3323 [F] Fan Tray
