OpenVMS Alpha Guide to Upgrading Privileged-Code Applications

3.4 Removed System Data Cells

Table 3-3 lists the system data cells that have been removed as of OpenVMS Alpha Version 7.0.

Table 3-3 Removed System Data Cells
Removed Cell Replacement Comments

CTL$AL_STACK CTL$AQ_STACK Arrays are now quadwords.

CTL$AL_STACKLIM CTL$AQ_STACKLIM Arrays are now quadwords.

EXE$GL_GPT MMG$GQ_FREE_GPT As of Version 7.0, free GPTEs are managed in the same manner as free system PTEs. Note that 64-bit virtual addresses are required to access GPTEs.

LDR$GL_FREE_PT LDR$GQ_FREE_S0S1_PT Contains the address of the start of the free S0/S1 PTE list. The format of the free PTEs has changed for Version 7.0.

MMG$GL_FRESVA MMG$GQ_NEXT_FREE_S0S1_VA

MMG$GL_GPTBASE MMG$GQ_GPT_BASE As of Version 7.0, free GPTEs are managed in the same manner as free system PTEs. Note that 64-bit virtual addresses are required to access GPTEs.

MMG$GL_MAXGPTE MMG$GQ_MAX_GPTE As of Version 7.0, free GPTEs are managed in the same manner as free system PTEs. Note that 64-bit virtual addresses are required to access GPTEs.

MMG$GL_P0_PTLEN None Obviated by the removal of the process page tables from the balance slot.

MMG$GL_PX_VPN_LENGTH None This data cell is obviated by the removal of the process page tables from the balance slot.

MMG$GL_RESERVED_SVA MMG$GQ_WINDOW_VA Increased in length to quadword.

MMG$GL_RESERVED_SVA2 MMG$GQ_WINDOW2_VA Increased in length to quadword.

MMG$GL_RESERVED_SVAPTE MMG$GQ_WINDOW_PTE_PFN 64-bit pointer to PFN field of first reserved PTE.

MMG$GL_RESERVED_SVAPTE2 MMG$GQ_WINDOW2_PTE_PFN 64-bit pointer to PFN field of second reserved PTE.

MMG$GL_SHARED_L2PT_PFN None This cell was deleted since it is possible have more than one shared L2PT. That is system space may span over multiple L2PTs.

MMG$GL_SPT_L2PTE_BIAS None This cell was deleted since it is possible have more than one shared L2PT. That is system space may span over multiple L2PTs.

MMG$GL_VA_TO_PX_VPN None This data cell has been completely obviated by the removal of the process page tables from the balance slot.

MMG$GL_ZERO_SVA MMG$GQ_WINDOW_VA Increased in length to quadword.

MMG$GL_ZERO_SVAPTE_PFN MMG$GQ_WINDOW_PTE_PFN 64-bit pointer to PFN field of reserved PTE.

MMG$GQ_PT_VA MMG$GQ_PT_BASE MMG$GQ_PT_VA was renamed to ensure that any code that had assumed a fixed location of page table space as a function of page size would be revisited. The location of page table space is now variable to meet the individual bootstrap needs of supporting Version 7.0, as well as being a function of the page size.

MPW$GW_HILIM MPW$GL_HILIM Increased in length to a longword.

MPW$GW_LOLIM MPW$GL_LOLIM Increased in length to a longword.

PFN$GB_LENGTH None

PFN$PL_DATABASE PFN$PQ_DATABASE The PFN database was moved to S2 space, which is only addressable with 64-bit pointers.

PHV$GL_REFCBAS PHV$GL_REFCBAS_LW The process header reference count vector has been promoted from an array of words to an array of longwords.

SGN$GL_PHDAPCNT None This cell was deleted as a result of moving the process page tables out of the balance slot.

SGN$GL_PHDP1WPAG None This cell was deleted as a result of moving the process page tables out of the balance slot.

SGN$GL_PHDRESPAG None This cell was deleted as a result of moving the process page tables out of the balance slot.

SGN$GL_PTPAGCNT None This cell was deleted as a result of moving the process page tables out of the balance slot.

SWP$GL_L1PT_SVAPTE None L1 page table now mapped virtually in page table space.

SWP$GL_L1PT_VA None L1 page table now mapped virtually in page table space.

SWP$GW_BAKPTE None This cell was deleted as a result of moving the process page tables out of the balance slot.

Part II
Enhancing Privileged-Code Applications

Chapter 4
Modifying Device Drivers to Support 64-Bit Addressing

This chapter describes how to modify customer-written device drivers to support 64-bit addresses.

For more information about the data structures and routines described in this chapter, see Appendix A and Appendix B.

4.1 Recommendations for Modifying Device Drivers

Before you can modify a device driver to support 64-bit addresses, your driver must recompile and relink without errors on OpenVMS Alpha Version 7.0. See Chapter 2. If you are using OpenVMS-supplied FDT routines, supporting 64-bit addresses can be automatic or easily obtained. Device drivers written in C are usually easier to modify than drivers written in MACRO-32. Drives using direct I/O are usually easier to modify than those using buffered I/O.

When your device driver runs successfully as a 32-bit addressable driver on OpenVMS Alpha Version 7.0, you can modify it to support 64-bit addresses as follows:

Select the functions that you want to support 64-bit functions.
Follow your IRP$L_QIO_P1 value and promote all references to 64-bit addresses.
Declare 64-bit support for the I/O function.

The remaining sections in this chapter provide more information about these recommendations.

4.2 Mixed Pointer Environment in C

OpenVMS Alpha 64-bit addressing support for mixed pointers includes the following features:

OpenVMS Alpha 64-bit virtual address space layout that applies to all processes. (There are no special 64-bit processes or 32-bit processes.)
64-bit pointer support for addressing the entire 64-bit OpenVMS Alpha address space layout including P0, P1, and P2 address spaces and S0/S1, S2, and page table address spaces.
32-bit pointer compatibility for addressing P0, P1, and S0/S1 address spaces.
Many new 64-bit system services which support P0, P1, and P2 space addresses.
Many existing system services enhanced to support 64-bit addressing.
32-bit sign-extension checking for all arguments passed to 32-bit pointer only system serivces.
C and MACRO-32 macros for handling 64-bit addresses.

To support 64-bit addresses in device drivers, you must use the new version (V5.2) of the DEC C compiler as follows:

Compile your device driver using /POINTER_SIZE=32

$ CC/STANDARD=RELAXED_ANSI89 -
    /INSTRUCTION=NOFLOATING_POINT -
    /EXTERN=STRICT -
    /POINTER_SIZE=32 -
    LRDRIVER+SYS$LIBRARY:SYS$LIB_C.TLB/LIBRARY

#pragma __required_pointer_size 32|64

64-bit pointer types are defined by header files; e.g.

#include <far_pointers.h>
VOID_PQ  user_va;  /* 64-bit "void *" */
...
#include <ptedef.h>
PTE *    svapte;   /* 32-bit pointer to a PTE */
PTE_PQ   va_pte;   /* Quadword pointer to a PTE */
PTE_PPQ  vapte_p;  /* Quadword pointer to a
                    * quadword pointer to a PTE */

Pointer size truncation warning

p0_va = p2_va;
^
%CC-W-MAYLOSEDATA, In this statement, "p2_va" has
   a larger data size than "short pointer to char"

4.3 $QIO Support for 64-Bit Addresses

The $QIO and $QIOW system services accept the following arguments:

$QIO[W] efn,chan,func,iosb,astadr,astprm,p1,p2,p3,p4,p5,p6

These services have a 64-bit friendly interface (as described in OpenVMS Alpha Guide to 64-Bit Addressing and VLM Features), which allows these services to support 64-bit addresses.

Table 4-1 summarizes the changes to the data types of the $QIO and $QIOW system service arguments to accommodate 64-bit addresses.

Table 4-1 $QIO [W] Argument Changes
Argument Prior Type New Type Description

efn Unsigned longword - Event flag number. Unchanged.

chan Unsigned word - Channel number. Unchanged.

func Unsigned longword - I/O function code. Unchanged.

iosb 32-bit pointer¹ 64-bit pointer Pointer to a quadword I/O status block (IOSB). The IOSB format is unchanged.

astadr 32-bit pointer¹ 64-bit pointer Procedure value of the caller's AST routine. On Alpha systems, the procedure value is a pointer to the procedure descriptor.

astprm Unsigned longword² Quadword Argument value for the AST routine.

P1 Longword² Quadword Device-dependent argument. Often P1 is a buffer address.

P2 Longword² Quadword Device-dependent argument. Only the low-order 32-bits will be used by system-supplied FDT routines that use P2 as the buffer size.

P3 Longword² Quadword Device-dependent argument.

P4 Longword² Quadword Device-dependent argument.

P5 Longword² Quadword Device-dependent argument.

P6 Longword² Quadword Device-dependent argument. Sometimes P6 is used to contain the address of a diagnostic buffer.

**Table 4-1 $QIO [W] Argument Changes**
Argument	Prior Type	New Type	Description
efn	Unsigned longword	-	Event flag number. Unchanged.
chan	Unsigned word	-	Channel number. Unchanged.
func	Unsigned longword	-	I/O function code. Unchanged.
iosb	32-bit pointer¹	64-bit pointer	Pointer to a quadword I/O status block (IOSB). The IOSB format is unchanged.
astadr	32-bit pointer¹	64-bit pointer	Procedure value of the caller's AST routine. On Alpha systems, the procedure value is a pointer to the procedure descriptor.
astprm	Unsigned longword²	Quadword	Argument value for the AST routine.
P1	Longword²	Quadword	Device-dependent argument. Often P1 is a buffer address.
P2	Longword²	Quadword	Device-dependent argument. Only the low-order 32-bits will be used by system-supplied FDT routines that use P2 as the buffer size.
P3	Longword²	Quadword	Device-dependent argument.
P4	Longword²	Quadword	Device-dependent argument.
P5	Longword²	Quadword	Device-dependent argument.
P6	Longword²	Quadword	Device-dependent argument. Sometimes P6 is used to contain the address of a diagnostic buffer.

¹32-bit pointer was sign-extended to 64 bits as required by the OpenVMS Calling Standard.
²32-bit longword value was sign-extended to 64 bits as required by the OpenVMS Calling Standard.

Usually the $QIO P1 argument specifies a buffer address. All the system-supplied upper-level FDT routines that support the read and write functions use this convention. The P1 argument determines whether the caller of the $QIO service requires 64-bit support. If the $QIO system service rejects a 64-bit I/O request, the following fatal system error status is returned:

SS$_NOT64DEVFUNC  64-bit address not supported by device for this function

This fatal condition value is returned under the following circumstances:

The caller has specified a 64-bit virtual address in the P1 device dependent argument, but the device driver does not support 64-bit addresses with the requested I/O function.
The caller has specified a 64-bit address for a diagnostic buffer, but the device driver does not support 64-bit addresses for diagnostic buffers.
Some device drivers may also return this condition value when 64-bit buffer addresses are passed using the P2 through P6 arguments and the driver does not support a 64-bit address with the requested I/O function.

For more information about the $QIO, $QIOW, and $SYNCH system services, see the OpenVMS System Services Reference Manual: GETQUI--Z.

4.4 Declaring Support for 64-Bit Addresses in Drivers

Device drivers declare that they can support a 64-bit address by individual function. The details vary depending on the language used to code the initialization of the driver's Function Decision Table.

4.4.1 Drivers Written in C

Drivers written in C use the ini_fdt_act macro to initialize an FDT entry for an I/O function. This macro uses the DRIVER$INI_FDT_ACT routine. Both the macro and the routine have been enhanced for OpenVMS Alpha Version 7.0.

The format of the macro in releases prior to OpenVMS Alpha Version 7.0 was:

ini_fdt_act (fdt, func, action, bufflag)

where the bufflag parameter must be one of the following:

BUFFERED The specified function is buffered.

NOT_BUFFERED The specified function is direct. This is a synonym for DIRECT.

DIRECT The specified function is direct. This is a synonym for NOT_BUFFERED.

The use of the bufflag parameter has been enhanced to include the declaration of 64-bit support by allowing 3 additional values:

BUFFERED_64 The specified function is buffered and supports a 64-bit address in the p1 parameter.

NOT_BUFFERED_64 The specified function is direct and supports a 64-bit address in the p1 parameter.

DIRECT_64 The specified function is direct and supports a 64-bit address in the p1 parameter.

If a driver does not support a 64-bit address on any of its functions, there is no need to change its use of the ini_fdt_act macro.

For example, the following C code segment declares that the IO$_READVBLK and IO$_READLBLK functions support 64-bit addresses.

ini_fdt_act (&driver$fdt, IO$_SENSEMODE, my_sensemode_fdt, BUFFERED);
ini_fdt_act (&driver$fdt, IO$_SETMODE,   my_setmode_fdt,   BUFFERED);
ini_fdt_act (&driver$fdt, IO$_READVBLK,  acp_std$readblk,  DIRECT_64);
ini_fdt_act (&driver$fdt, IO$_READLBLK,  acp_std$readblk,  DIRECT_64);

The interpretation of the bufflag parameter to the DRIVER$INI_FDT_ACT routine has been enhanced to support the new values and the setting of the 64-bit support mask in the FDT data structure.

4.4.2 Drivers Written in MACRO-32

As of OpenVMS Alpha Version 7.0, drivers written in MACRO-32 use a new FDT_64 macro to declare the set of I/O functions for which the driver supports 64-bit addresses. The use of the FDT_64 macro is similar to the use of the existing FDT_BUF macro. If a driver does not support a 64-bit address on any of its functions, there is no need to use the new FDT_64 macro.

For example, the following MACRO-32 code segment declares that the IO$_READVBLK and IO$_READLBLK functions support 64-bit addresses.

FDT_INI   MY_FDT
FDT_BUF   <SENSEMODE,SETMODE>
FDT_64    <READVBLK,READLBLK>
FDT_ACT   ACP_STD$READBLK, <READVBLK,READLBLK>

4.4.3 Drivers Written in BLISS

As of OpenVMS Alpha Version 7.0, drivers written in BLISS-32 and BLISS-64 use a new optional keyword parameter, FDT_64, to the existing FDTAB macro to declare the set of I/O functions that support 64-bit addresses. The use of the new FDT_64 parameter is similar to the use of the existing FDT_BUF parameter. If a driver does not support a 64-bit address on any of its functions, there is no need to use the new FDT_64 parameter.

For example, the following BLISS code segment declares that the IO$_READVBLK and IO$_READLBLK functions support 64-bit addresses.

FDTAB (
    FDT_NAME = MY_FDT,
    FDT_BUF  = (SENSEMODE,SETMODE),
    FDT_64   = (READVBLK,READLBLK),
    FDT_ACT  = (ACP_STD$READBLK, (READVBLK,READLBLK) )
    );

4.5 I/O Mechanisms

Table 4-2 summarizes the I/O mechanisms that support 64-bit addresses.

Table 4-2 Summary of 64-Bit Support by I/O Mechanism
Mechanism 64-bits Comments

Simple buffered I/O yes 32/64-bit BUFIO packet headers

Complex Buffered I/O no Used by XQP and ACPs

Complex Chained Buffered I/O yes New cells in CXB

Direct I/O yes Cross-process PTE problem

LAN VCI yes Cross-process PTE problem

VMS I/O Cache yes 64-bit support is transparent to other components

Buffer Objects yes Special case of direct I/O

Diagnostic buffers yes Driver-wide attribute

**Table 4-2 Summary of 64-Bit Support by I/O Mechanism**
Mechanism	64-bits	Comments

Simple buffered I/O	yes	32/64-bit BUFIO packet headers

Complex Buffered I/O	no	Used by XQP and ACPs

Complex Chained Buffered I/O	yes	New cells in CXB

Direct I/O	yes	Cross-process PTE problem

LAN VCI	yes	Cross-process PTE problem

VMS I/O Cache	yes	64-bit support is transparent to other components

Buffer Objects	yes	Special case of direct I/O

Diagnostic buffers	yes	Driver-wide attribute

4.5.1 Simple Buffered I/O

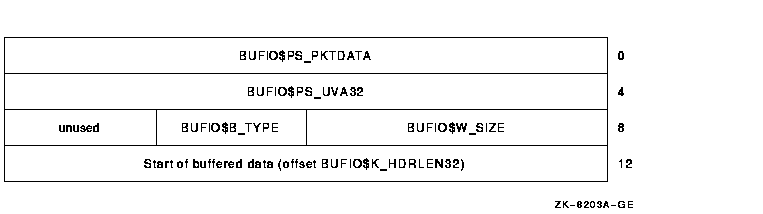

Figure 4-1 shows a 32-bit buffered I/O packet header.

Figure 4-1 32-bit Buffered I/O Packet Header

BUFIO$PS_PKTDATA	Contains pointer to buffered data in packet

BUFIO$PS_UVA32	Contains 32-bit user virtual address

No symbolic offsets currently defined.
Frequent use of manifest constants; for example:
```
     MOVAB   12(R2),(R2)
```
Dependencies on the packet header layout can be anywhere in the driver code path.
Drivers allocate and initialize these packets.

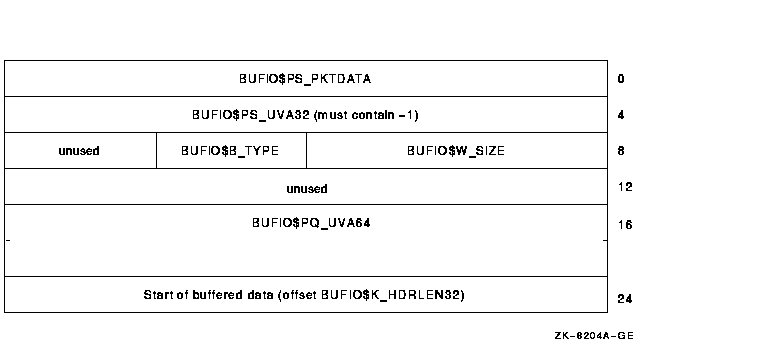

A 64-bit buffered packet header is as shown in Figure 4-2.

Figure 4-2 New 64-bit Buffered I/O Packet Header

BUFIO$PS_PKTDATA	Contains pointer to buffered data in packet

BUFIO$PS_UVA32	Must contain BUFIO$K_64 (-1) value

BUFIO$PQ_UVA64	Contains 64-bit user virtual address

BUFIO structures and offsets now defined.
Both formats supported.
BUFIO packets are self-identifying.
New routines EXE_STD$ALLOC_BUFIO_64, EXE_STD$ALLOC_BUFIO_32.
Used for diagnostic buffers as well.

4.5.2 Direct I/O

The caller's virtual address for the buffer is used only in FDT context.
Most of the driver identifies buffer start by IRP$L_SVAPTE and IRP$L_BOFF.
Driver "layering" in start I/O or fork environments.
Most drivers use either OpenVMS-supplied upper-level FDT routines and FDT support routines.

The moving of the page tables has a significant impact:

Only the current process's PPTEs are available at any given time.
This is called the "cross-process PTE access" problem.
A 64-bit address is required to access page table entries in page table space: process, global, and system PTEs.
Because "SVAPTE, BOFF, BCNT" are used in many device drivers, the impact of 1 and 2 is not insignificant.

4.5.3 Direct I/O Buffer Map (DIOBM)

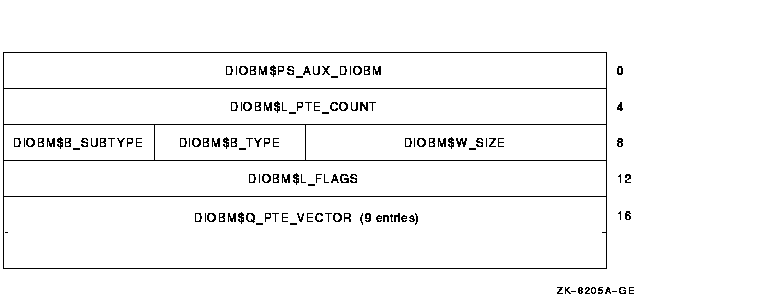

Figure 4-3 shows the DIOBM data structure.

Figure 4-3 Direct I/O Buffer Map

Use PTE vector in DIOBM for buffers up to 64 Kb
Use "secondary" DIOBM for buffers up to 5.2 Mb
Use PTE window method with DIOBM for larger
DIOBM embedded in IRP, IRPE, VCRP, DCBE
MMG_STD$IOLOCK_BUF replaces MMG_STD$IOLOCK
New DIOBM routines; e.g. IOC_STD$FILL_DIOBM
Also of interest to LAN VCI clients

4.5.4 64-Bit ASTs

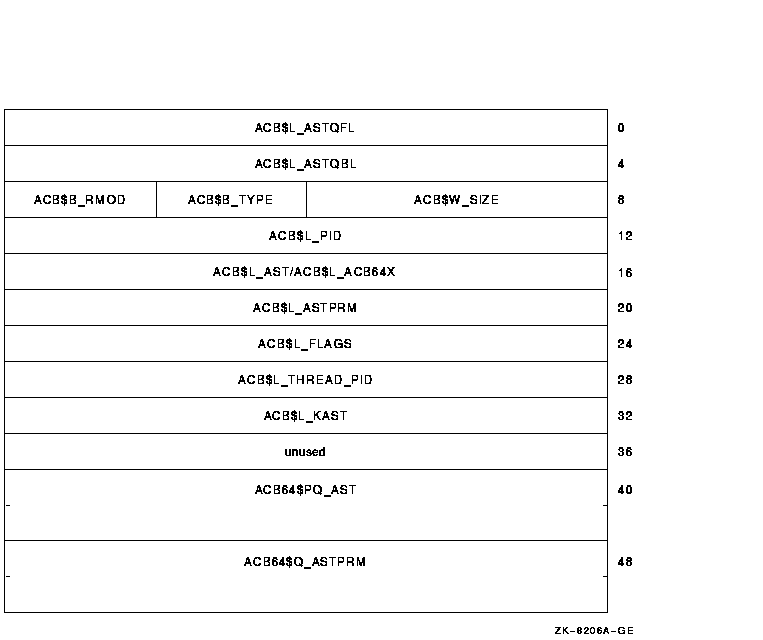

Figure 4-4 shows a 64-Bit AST.

Figure 4-4 64-Bit ASTs

ACB$B_RMOD	New ACB$V_FLAGS_VALID bit (last spare bit)

ACB$L_FLAGS	Contains ACB$V_64BITS bit (was filler space)

ACB$L_ACB64X	Byte offset to ACB64X structure

Both ACB and ACB64X formats are supported.
ACB packets are self-identifying.
An ACB64 is an ACB with an immediate ACB64X.

4.5.5 64-Bit ACB within the IRP

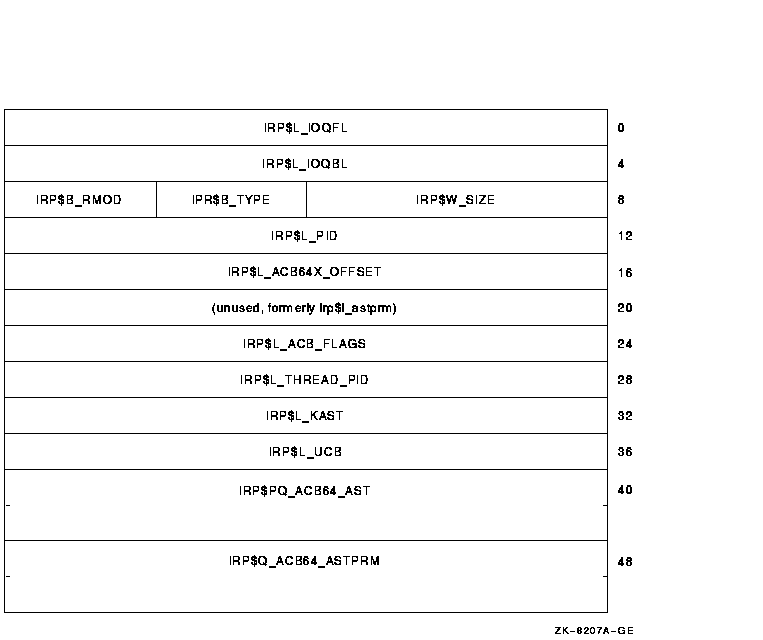

An embedded ACB64 at the start of the IRP is shown in Figure 4-5.

Figure 4-5 Embedded ACB64

An IRP created by the $QIO system service uses the ACB64 layout unconditionally.

IRP$B_RMOD New ACB$V_FLAGS_VALID bit always set

IRP$L_ACB_FLAGS New ACB$V_64BITS bit always set

IRP$L_ACB64X_OFFSET Contains hex 28

4.5.6 I/O Function Definitions

I/O functions are defined as follows:

Direct I/O, raw data transfer
Functions in this category are implemented as direct I/O operations and transfer raw data from the caller's buffer to the device without significant alteration or interpretation of the data.
Direct I/O, control data transfer
Functions in this category are implemented as direct I/O operations and transfer control information from the caller's buffer to the device driver. The device driver usually interprets the data or uses it to control the operation of the device.
Usually these functions do not support 64-bit addresses. In contrast to the raw data transfers, control data transfers tend to be smaller and are invoked less frequently. Thus, there is less need to be able to store such data in a 64-bit addressable region. The only area impacted in the driver are the corresponding FDT routines. However, control data often introduces the problem of embedded 32-bit pointers.
Buffered I/O, raw data transfer
Functions in this category are implemented as buffered I/O operations by the device driver but are otherwise the same type of raw data transfer from the caller's buffer as the first category.
Buffered I/O, control data transfer
Functions in this category are implemented as buffered I/O operations by the device driver but are otherwise the same type of control data transfer from the caller's buffer as the second category.
Control operation, no data transfer, with parameters
Functions in this category control the device and do not transfer any data between a caller's buffer and the device. Since there is no caller's buffer it doesn't matter whether the function is designated as a buffered or direct I/O function. The control operation has parameters that are specified in p1 through p6 however these parameters do not point to a buffer.
Control operation, no data transfer, with no parameters
Functions in this category control the device and do not transfer any data between a caller's buffer and the device. Since there is no caller's buffer it doesn't matter whether the function is designated as a buffered or direct I/O function. In addition, there are no parameters for these functions.

Table 4-3 summarizes the I/O functions described in this section.

Table 4-3 Guidelines for 64-bit Support by I/O Function
Function type 64-bits Area of impact

Direct I/O, raw data transfer yes FDT only

Direct I/O, control data transfer no FDT only

Buffered I/O, raw data transfer no/yes Entire driver, new BUFIO packet

Buffered I/O, control data transfer no Entire driver, new BUFIO packet

Control, no data transfer, param no Entire path but usually simple

Control, no data transfer, no params moot None

4.6 64-Bit Support in Example Driver

This section summarizes changes made to the example device driver (LRDRIVER.C) to support 64-bit buffer addresses on all I/O functions.

  6466P003.HTM
  OSSG Documentation
  22-NOV-1996 13:11:33.66

Legal

Removed Cell	Replacement	Comments
CTL$AL_STACK	CTL$AQ_STACK	Arrays are now quadwords.

CTL$AL_STACKLIM	CTL$AQ_STACKLIM	Arrays are now quadwords.

EXE$GL_GPT	MMG$GQ_FREE_GPT	As of Version 7.0, free GPTEs are managed in the same manner as free system PTEs. Note that 64-bit virtual addresses are required to access GPTEs.

LDR$GL_FREE_PT	LDR$GQ_FREE_S0S1_PT	Contains the address of the start of the free S0/S1 PTE list. The format of the free PTEs has changed for Version 7.0.

MMG$GL_FRESVA	MMG$GQ_NEXT_FREE_S0S1_VA

MMG$GL_GPTBASE	MMG$GQ_GPT_BASE	As of Version 7.0, free GPTEs are managed in the same manner as free system PTEs. Note that 64-bit virtual addresses are required to access GPTEs.

MMG$GL_MAXGPTE	MMG$GQ_MAX_GPTE	As of Version 7.0, free GPTEs are managed in the same manner as free system PTEs. Note that 64-bit virtual addresses are required to access GPTEs.

MMG$GL_P0_PTLEN	None	Obviated by the removal of the process page tables from the balance slot.

MMG$GL_PX_VPN_LENGTH	None	This data cell is obviated by the removal of the process page tables from the balance slot.

MMG$GL_RESERVED_SVA	MMG$GQ_WINDOW_VA	Increased in length to quadword.

MMG$GL_RESERVED_SVA2	MMG$GQ_WINDOW2_VA	Increased in length to quadword.

MMG$GL_RESERVED_SVAPTE	MMG$GQ_WINDOW_PTE_PFN	64-bit pointer to PFN field of first reserved PTE.

MMG$GL_RESERVED_SVAPTE2	MMG$GQ_WINDOW2_PTE_PFN	64-bit pointer to PFN field of second reserved PTE.

MMG$GL_SHARED_L2PT_PFN	None	This cell was deleted since it is possible have more than one shared L2PT. That is system space may span over multiple L2PTs.

MMG$GL_SPT_L2PTE_BIAS	None	This cell was deleted since it is possible have more than one shared L2PT. That is system space may span over multiple L2PTs.

MMG$GL_VA_TO_PX_VPN	None	This data cell has been completely obviated by the removal of the process page tables from the balance slot.

MMG$GL_ZERO_SVA	MMG$GQ_WINDOW_VA	Increased in length to quadword.

MMG$GL_ZERO_SVAPTE_PFN	MMG$GQ_WINDOW_PTE_PFN	64-bit pointer to PFN field of reserved PTE.

MMG$GQ_PT_VA	MMG$GQ_PT_BASE	MMG$GQ_PT_VA was renamed to ensure that any code that had assumed a fixed location of page table space as a function of page size would be revisited. The location of page table space is now variable to meet the individual bootstrap needs of supporting Version 7.0, as well as being a function of the page size.

MPW$GW_HILIM	MPW$GL_HILIM	Increased in length to a longword.

MPW$GW_LOLIM	MPW$GL_LOLIM	Increased in length to a longword.

PFN$GB_LENGTH	None

PFN$PL_DATABASE	PFN$PQ_DATABASE	The PFN database was moved to S2 space, which is only addressable with 64-bit pointers.

PHV$GL_REFCBAS	PHV$GL_REFCBAS_LW	The process header reference count vector has been promoted from an array of words to an array of longwords.

SGN$GL_PHDAPCNT	None	This cell was deleted as a result of moving the process page tables out of the balance slot.

SGN$GL_PHDP1WPAG	None	This cell was deleted as a result of moving the process page tables out of the balance slot.

SGN$GL_PHDRESPAG	None	This cell was deleted as a result of moving the process page tables out of the balance slot.

SGN$GL_PTPAGCNT	None	This cell was deleted as a result of moving the process page tables out of the balance slot.

SWP$GL_L1PT_SVAPTE	None	L1 page table now mapped virtually in page table space.

SWP$GL_L1PT_VA	None	L1 page table now mapped virtually in page table space.

SWP$GW_BAKPTE	None	This cell was deleted as a result of moving the process page tables out of the balance slot.

	BUFFERED	The specified function is buffered.
	NOT_BUFFERED	The specified function is direct. This is a synonym for DIRECT.
	DIRECT	The specified function is direct. This is a synonym for NOT_BUFFERED.

	BUFFERED_64	The specified function is buffered and supports a 64-bit address in the p1 parameter.
	NOT_BUFFERED_64	The specified function is direct and supports a 64-bit address in the p1 parameter.
	DIRECT_64	The specified function is direct and supports a 64-bit address in the p1 parameter.

IRP$B_RMOD	New ACB$V_FLAGS_VALID bit always set

IRP$L_ACB_FLAGS	New ACB$V_64BITS bit always set

IRP$L_ACB64X_OFFSET	Contains hex 28

Function type	64-bits	Area of impact

Direct I/O, raw data transfer	yes	FDT only

Direct I/O, control data transfer	no	FDT only

Buffered I/O, raw data transfer	no/yes	Entire driver, new BUFIO packet

Buffered I/O, control data transfer	no	Entire driver, new BUFIO packet

Control, no data transfer, param	no	Entire path but usually simple

Control, no data transfer, no params	moot	None
